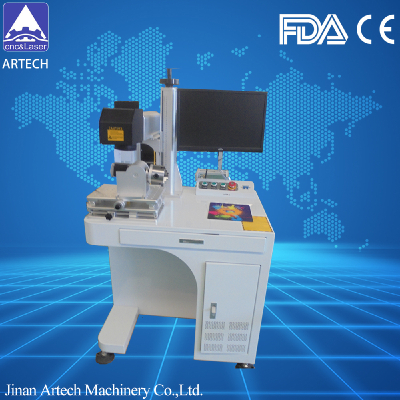

Quick Details
Application: Laser Marking
Condition: New
Laser Type: Fiber Laser
CNC or Not: Yes
Cooling Mode: Air Cooling
Control Software: EZCAD
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Working Accuracy: 0.01mm
Place of Origin: Shandong, China (Mainland)
Brand Name: ARTECHCNC
Model Number: ART20F
Power(W): 20W
Certification: CE, ISO
After-sales Service Provided: Engineers available to service machinery overseas
Laser Power: 20W(Optional)
Applicable Material: Stainless Steel
Laser wavelength: 1064nm
Marking Speed: 10000mm/s
Laser Source: Raycus
Marking area: 100*100mm
Marking Depth: 0-1mm (according
Packaging & Delivery
| Packaging Details: | Plywood case |
|---|
| Delivery Detail: | Shipped in 7 days after payment |
|---|
Model | ART-20F | ART-10F | ART-30F |
Laser Power | 20W | 20W | 30W |
Q-frequency | 20KHz~30KHz |
Divergence | 0.3mard |
Marking Range | 100*100mm |
Minimum Line Width | 0.02mm |
Minimum Character | 0.15mm |
Marking Depth | 0 ~0.5mm |
Engraving Line Speed | ≤7000mm/s |
Repeatability Accuracy | ±0.001mm |
Beam Quality | M2:1.2~1.8 |
Marking Format | Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batch Number,Serial Number,Frequency,etc. |
Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
Working Voltage | 220V±10%/50Hz/4A |
Unit Power | <0.5kw |
Working Condition:Humidity | 5%-75%,Free of Condensed Water |
Features :
1.power controlled by software can be adjusted.
2.Impored RF metal tube, with whole life use
3.Large marking scope, the mark is clear and not easily destroyed.
4.fast working speed and consistent performance
Applicable industry:
clothing materials, medicine packages, wine packages, building ceramics, beverage packages, cut fabrics, rubber products, nameplates, crafts and gifts, electronics and leather products , all kinds of metal ect .
Applicable materials:
All kinds of nonmetals and metal materials. The machine supports a wide range of marking types including different patterns and graphics, logos, enclosure numbers, serial numbers, and text - for example, the information of producers and target regions, enabling effective prevention of disorderly competition caused by counterfeit products
ABOUT US:
Jinan Artech CNC MACHINERY Co., Ltd., established in 2006, specializing in CNC machinery with rich experience !The company has two factories: CNC Router and laser machine factories and plants.
Artech is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, "Brand ArtechCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
Artech group integrates the excellent design, production and logistics resources, specialty engaged in the laser machine, engraving machine production and marketing job up to 11 years Now we have mature production workers more than 100 people, 10 sales teams, 2 product research and development teams , 2 after-sales service teams Products exported to Europe,America,Australia ,Africa,Asia etc, welcomed by consumers and good evaluation Artech people firmly believe that in the near future
