- Size: 4
- Place of Origin: CHINA
- Brand Name: ArtechCNC
- Model Number: ART6060
- Weight: 550.000 kg

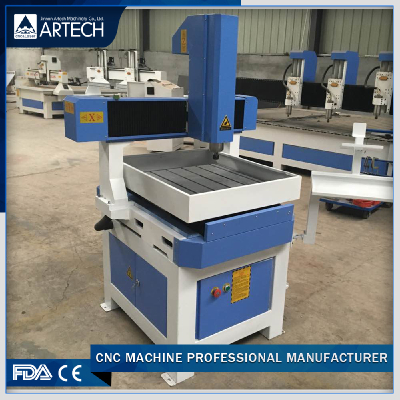

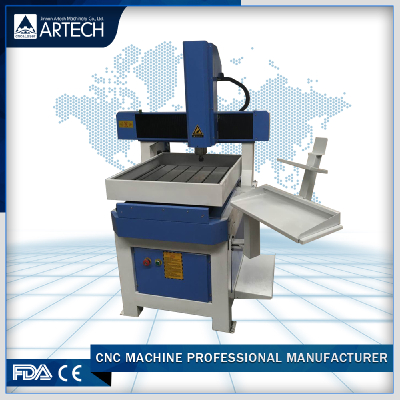

mini cnc router ART6060 with water tank
Parameters | Standard Specifications ART6060T |
X,Y,Z Working Area | 600*600*150mm |
Spindle Power | 2.2KW water cooling spindle |
X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
Table Surface | T-slot table with water tank |
X,Y,Z Rail and Transmission | Taiwan TBI Ball Screw |
Max. Rapid Travel Rate | 50000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Speed | 24000RPM |
Drive Motors | stepper motor and driver |
Working Voltage | AC380V/3PH/50Hz or 220V |
Command Language | G Code |
Operating System | DSP A11 |
Software Compatibility | Option:Type3, Ucancam, Artcam, solidworks,etc. |
Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
Parameters | Standard Specifications |
Oil system | Handel |
Frame structure | Welding structure |
Collect | ER20 collect |
Dust collector | 1 pieces |
wireless wheel | Yes |
Guarantee:
1.18 months guarantee of the whole machine
2.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge
4.We will provide the consumable parts at an agency price when you need replacement
5.Machine has been adjusted and tested before delivery
6.Our staff can be sent to your company to install or adjust if necessary
Payment terms:T/T 30% payment for deposit, after the machine finished, we will take the testing videos for you to check the machine,After you satisfied our machine you pay the left 70% payment. Then we will delivery the machine.
After-sale service:
1. 24hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
3. Hardware: 18 months for machine (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
- Size: 4
- Place of Origin: CHINA
- Brand Name: ArtechCNC
- Model Number: ART6060
- Weight: 550.000 kg
Parameters | Standard Specifications ART6060T |
X,Y,Z Working Area | 600*600*150mm |
Spindle Power | 2.2KW water cooling spindle |
X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
Table Surface | T-slot table with water tank |
X,Y,Z Rail and Transmission | Taiwan TBI Ball Screw |
Max. Rapid Travel Rate | 50000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Speed | 24000RPM |
Drive Motors | stepper motor and driver |
Working Voltage | AC380V/3PH/50Hz or 220V |
Command Language | G Code |
Operating System | DSP A11 |
Software Compatibility | Option:Type3, Ucancam, Artcam, solidworks,etc. |
Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
Parameters | Standard Specifications |
Oil system | Handel |
Frame structure | Welding structure |
Collect | ER20 collect |
Dust collector | 1 pieces |
wireless wheel | Yes |
