Quick Details
Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal, Sainless Steel ,Carbon steel ,Aluminum..
Cutting Thickness: Depends
Cutting Area: 1300*2500mm
Cutting Speed: 0-40000mm/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Friendiness
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, PLT
Place of Origin: Shandong, China (Mainland)
Brand Name: ARTECHCNC
Model Number: ART1325
Certification: CE, ISO
After-sales Service Provided: Engineers available to service machinery overseas
Laser power: 500W
Keyword: fiber metal cutting machine
Type: fiber laser
motors: Japanese servos system
stainless steel: 4mm
Carbon steel: 6mm
Transmission: gear rack X Y ,ball screw Z axis
Packaging & Delivery
| Packaging Details: | plywood case |
|---|
| Delivery Detail: | Shipped in 20 days after payment |
|---|

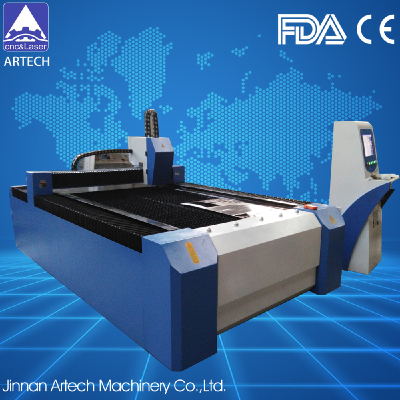

Fiber metal laser cutting machine
Fiber metal laser cutting machine details
Machine Model# | ARF1325 |
Max. working area | 1300×2500mm |
Cutting thickness | 0.2-2mm Stainless Steel 0.2-4mm carbon steel |
Laser wavelength | 1080nm |
Out put Power | 500w (10-100%) |
Laser power injection | 1.5KW |
Water chiller power | 6000 |
X,Y-axis location/repeat accuracy | ±0.01mm |
Machine weight | 2500KG |
X,Y-axis fast moving speed | 30m/min |
X,Y-axis max. cutting speed | 20m/min |
Min. cutting line width | 0.02 |
Max. cutting speed | 12m/min |
Motors X axis 850w,Y axis two 1300w,Z axis 400w | 4 sets Japanese Yaskawa servo motors , gear boxes |
fiber laser | 500w. |
transmission | Gear rack |
fiber metal laser cutting machine functions and features
ost Machine
Gantry type mechanical structure,compact taking up small area;
1) Machine used Military CSIC standard design.
2) Reduced structure, machine weight 2.5T.
3) Save the producing cost but kept the life time, still could be at least 17~20 years.
Beautiful and dignified in appearance,war industry technique and backfire treatment;high working efficiency and steady performance
Working table,
1)Knife table high precision, put cutting sheet on it
2)Special designed small pneumatic wheel carriers ,the metal sheet to be cut may slide along the machine body for easy loading
Cylinder lifting, more easy to upload cutting sheet
ABOUT US:
Jinan Artech CNC MACHINERY Co., Ltd., established in 2006, specializing in CNC machinery with rich experience !The company has two factories: CNC Router and laser machine factories and plants.
Artech is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, "Brand ArtechCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
Artech group integrates the excellent design, production and logistics resources, specialty engaged in the laser machine, engraving machine production and marketing job up to 11 years Now we have mature production workers more than 100 people, 10 sales teams, 2 product research and development teams , 2 after-sales service teams Products exported to Europe,America,Australia ,Africa,Asia etc, welcomed by consumers and good evaluation Artech people firmly believe that in the near future
FAQ:
Q1 For offer the most suitable machine,how should i do ?
1).The exact material you want to engrave/cut? (such as wood, acrylic, cloth, fabric, leather, metal.... ? )
2). For the Spindle Power, may I know the cutting or engraving depth you want?
3). The working area you demand? (such as max dimension of material, width*length,1200*1200mm,1300*2500mm,2000*3000mm, etc...
4). Do you want to engrave on planar &flat surface or round &curved surface?
If yes,the machine shall be added optional items, such as rotary attachment. if you can provide some pictures of your products,that would be great! after your tell us these,we will send you more information about the machine and price.
Q2.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.
Q3.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q4.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
